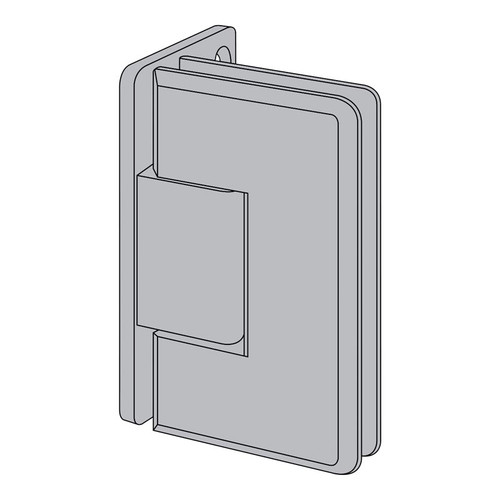

COL0O – Glass Simple Columbia Beveled Profile Wall Mount Hinge, Offset Back Plate

Description

• Compare to C0L044, HMBGTW0P, CLN02
• Wall mount hinge with offset back plate
• Self-centering, (90 degree factory set)
• 5 degree positive close option - the pin can be rotated to 85 degrees, thus allowing for a 5 degree tighter close
• For 3/8”-1/2” glass
• For use with tempered or tempered/laminated glass
• Solid brass
• Swings 90 degrees both ways
• Strong design for heavier doors

Other Details

• Edge: Beveled profile
• Compare to: C0L044, HMBGTW0P, CLN02

Technical Specifications

• If using 2 hinges, maximum door weight is 100 lbs and maximum door width is 34” (864 mm) for 3/8” glass or 32” (813 mm) for 1/2” glass.
• If using 3 hinges, maximum door weight is 130 lbs, and maximum door width is 34” (864 mm) for 3/8” glass and 32” (813mm) for 1/2” glass.
• DO NOT exceed the maximum door weight OR door width for the number of hinges you are using.
• Only monolithic tempered glass may be used.
• Avoid using power tools during hinge installation as these may damage the finish.
• One thick gasket on each side is needed for 3/8” (10 mm) glass.
• One thin gasket on each side is needed for 1/2" (12 mm) glass.

Product Details

This Columbia series hinge offers appealing features. It is a wall mount hinge with full back plate made of solid brass and available in various popular finishes. The 90 degree factory setting of the pivot pin is right for standard door closure. Purchaser can adjust the pivot pin for 5 more degrees of closure if the door needs to close with more pressure against the jamb.

Cleaning Your Glass Simple Hardware

• Dry hardware after use to minimize water spots and other discoloration.
• Avoid harsh or abrasive cleaning agents, scrub brushes, etc. as these will damage the finish.
• Use a mild mixture of gentle liquid soap and water and test on an inconspicuous part of the hardware first.
• After washing, thoroughly rinse with clean warm water and buff dry.

Hinge Care

• Glass Simple hinges arrive pre-greased for quiet operation.
• In the event of a hinge squeaking, add a several drops of mult-purpose oil around the nylon washer.
• If the hinge is taken apart, the interior components should be lubricated with a little bit of white lithium grease.
• Avoid spray-on lubricants.
