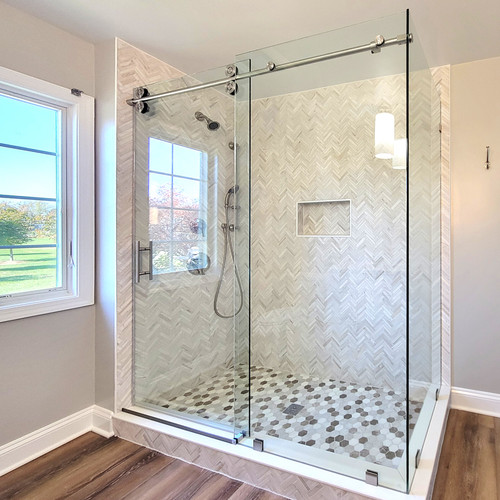

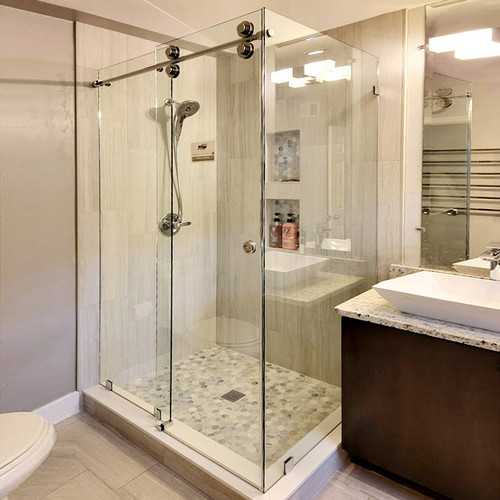

COR78 - Glass Simple Coronado 180° Sliding Shower Door System

• Compare to Crescent CRE78, Clearwater CW78
• Header Length: 78″ (can be cut on-site)
• Glass Thickness Supported: 3/8″ (10 mm) or 1/2″ (12 mm) tempered glass (not included)
• Maximum Door Width: 36″ (914 mm)
• Maximum Door Weight: 100 lbs (45 kg)
• Configuration: 1 sliding panel / 1 fixed panel
• Rollers: Top-mounted circular rollers
• Material: Stainless steel components
• Finishes: Brushed Bronze, Brushed Stainless, Matte Black, Polished Stainless and Satin Brass

The Glass Simple Coronado COR78 is a complete hardware system only for frameless sliding shower enclosures. Designed primarily for 180° inline installations, the system features one sliding door panel and one fixed panel configuration supported by a durable top-mounted roller and header system (glass sold separately).

For corner applications, the Coronado COR78 can be adapted for 90° enclosures with the purchase of the Glass Simple COR90 add-on kit (sold separately).

⚠️ Note: This is a hardware kit only. Glass panels (sold separately or supplied by installer), Click HERE to purchase stock sliding door glass, Click HERE to purchase stock fixed panel glass.

Hardware Kit Contents (Glass Simple COR78 Inline System)

• 78″ Header bar
• 4 Rollers
• 1 Door stopper
• 2 Wall-mount brackets
• 2 Track-holder brackets for fixed panel
• Bottom guide (with inserts for 3/8″ and 1/2″ glass)
• Two 40″ Bottom sweeps with drip rails (one for 3/8” glass and one for ½” glass)
• 80″ Clear L-Jamb

Not Included:

• Glass panels (sold separately or supplied by installer), Click HERE to purchase stock sliding door glass, Click HERE to purchase stock fixed panel glass.
• Door handle or knob
• Glass clamps or U-channel for fixed panel

Optional Add-On

• Glass Simple COR90 Kit – Converts COR78 into a 90° corner sliding enclosure
• Handles/knobs in matching finishes
• Clamps or U-channel for securing fixed panels
• Additional seals and sweeps

Installation Notes

• Hardware system only – glass fabrication required.
• Header bar can be cut down in the field for openings up to 79″.
• Reversible installation: left- or right-hand sliding.
• Fixed panel can be secured with clamps or U-channel (sold separately).
• Max weight per sliding panel: 100 lbs.
• Confirm opening dimensions before ordering glass.

Safety & Compliance

• Use with tempered safety glass only (not included).
• Professional installation required; not intended for DIY.

Installer Summary

The Glass Simple Coronado COR78 provides contractors with a complete hardware package for frameless sliding shower doors in 180° inline applications. With the optional Glass Simple COR90 kit, it can also be used for 90° corner enclosures.

Glass, handles, clamps, or U-channel must be ordered separately. The COR78 system is field-adjustable, installer-friendly, and available in multiple finishes, making it a reliable choice for professionals.
