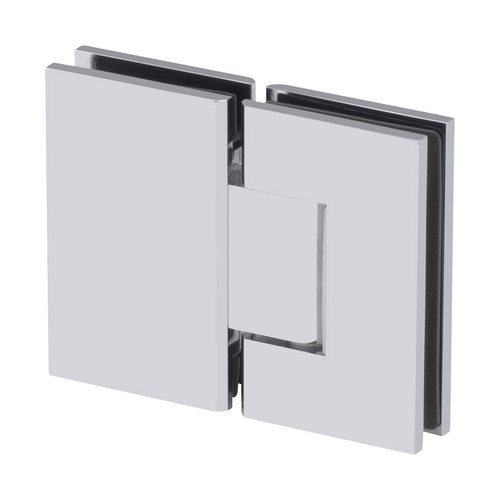

GEN180G - Glass Simple Genesis Square Profile 180 Degree Glass to Glass Shower Door Hinge

Description

• Compare to GEN180, GLEN180, H180GTG
• Self-centering 180 degree glass to glass hinge
• For 5/16”-1/2” (8mm-12mm) tempered glass
• 5 degree offset
• Swings 90 degrees both ways
• Solid brass

Other Details

• Edge: Square profile

Technical Specifications

• If using 2 hinges, maximum door weight is 80 lbs and maximum door width is 28” (711 mm).
• If using 3 hinges, maximum door weight is 120 lbs, and maximum door width is 32” (813 mm).
• DO NOT exceed the maximum door weight OR door width for the number of hinges you are using.
• Only monolithic tempered glass may be used.
• Avoid using power tools during hinge installation as these may damage the finish.

Product Details

 The Genesis series hinge offers appealing features. It is a glass to glass hinge made of solid brass and available in various popular finishes. The 90 degree factory setting of the pivot pin is right for standard door closure. Purchaser can adjust the pivot pin for 5 more degrees of closure if the door needs to close with more pressure against the jamb.

Cleaning Your Glass Simple Hardware

• Dry hardware after use to minimize water spots and other discoloration.
• Avoid harsh or abrasive cleaning agents, scrub brushes, etc. as these will damage the finish.
• Use a mild mixture of gentle liquid soap and water and test on an inconspicuous part of the hardware first.
• After washing, thoroughly rinse with clean warm water and buff dry.

Hinge Care

• Glass Simple hinges arrive pre-greased for quiet operation.
• In the event of a hinge squeaking, add a several drops of mult-purpose oil around the nylon washer.
• If the hinge is taken apart, the interior components should be lubricated with a little bit of white lithium grease.
• Avoid spray-on lubricants.
