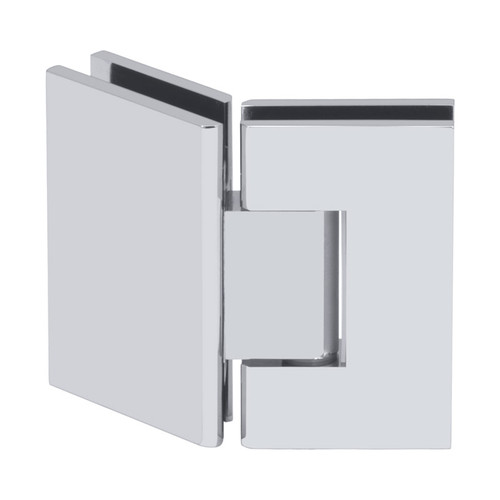

GEN535G - GLASS SIMPLE GENESIS SQUARE PROFILE 135 DEGREE GLASS TO GLASS SHOWER DOOR HINGE, FACTORY SET 5 DEGREE POSITIVE CLOSE

Description

• Compare to GEN545, GLEN535, H135GTG5
• Self-centering 135 degree glass to glass hinge
• For 3/8”-1/2” (10mm-12mm) tempered glass
• 5 degree offset
• Swings 90 degrees both ways
• Solid brass



Other Details

• Edge: Square profile

Technical Specifications

• If using 2 hinges, maximum door weight is 80 lbs and maximum door width is 28” (711 mm).
• If using 3 hinges, maximum door weight is 120 lbs, and maximum door width is 32” (813 mm).
• DO NOT exceed the maximum door weight OR door width for the number of hinges you are using.
• A single set of gaskets is provided with the hinge and is intended for use with either 3/8” or 1/2” glass.
• Only tempered or tempered laminated glass may be used.
• Avoid using power tools during hinge installation as these may damage the finish.

Product Details

The Genesis series hinge offers appealing features. It is a glass to glass hinge made of solid brass and available in various popular finishes. The hinge comes with the pin set at 85 degrees for 5 degrees of extra pressure against the jamb. The pin can be adjusted for standard 90 degree door closure if desired. The hinge comes with a bidirectional hinge block bumper that is designed to protect the hinge block when the door swings to the full opening position in and out.

Cleaning Your Glass Simple Hardware

• Dry hardware after use to minimize water spots and other discoloration.
• Avoid harsh or abrasive cleaning agents, scrub brushes, etc. as these will damage the finish.
• Use a mild mixture of gentle liquid soap and water and test on an inconspicuous part of the hardware first.
• After washing, thoroughly rinse with clean warm water and buff dry.

Hinge Care

• Glass Simple hinges arrive pre-greased for quiet operation.
• In the event of a hinge squeaking, add a several drops of mult-purpose oil around the nylon washer.
• If the hinge is taken apart, the interior components should be lubricated with a little bit of white lithium grease.

Avoid spray-on lubricants.
