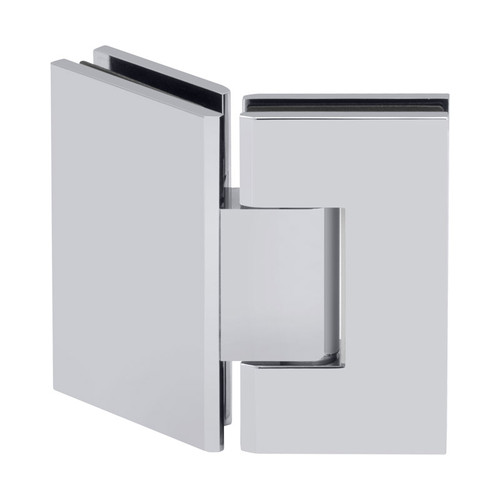

VER535G – Glass Simple Verona Square Profile 135 Degree Glass to Glass Hinge, Factory Set 5 Degree Positive Close

Description

• Compare to V1E545, VEN535
• 135 degree glass to glass hinge
• For 3/8” – 1/2” (12mm) tempered glass
• Strong design for wider doors
• Solid brass
• Swings both ways
• Self centering

Other Details

• Edge: Square profile

Technical Specifications

• If using 2 hinges, maximum door weight is 100 lbs and maximum door width is 32” (813 mm).
• If using 3 hinges, maximum door weight is 130 lbs, and maximum door width is 34” (864 mm).
• DO NOT exceed the maximum door weight OR door width for the number of hinges you are using.
• Only tempered or laminated tempered glass may be used.
• Avoid using power tools during hinge installation as these may damage the finish.
• A single set of gaskets is provided with the hinge and is intended for use with either 3/8” or 1/2” glass.

Product Details

The Verona series hinge offers appealing features. It is a solid brass glass to glass hinge, available in various popular finishes. The hinge comes with the pin set at 85 degrees for 5 degrees of extra pressure against the jamb. The pin can be adjusted for standard 90 degree door closure if desired. The hinge comes with a bidirectional hinge block bumper that is designed to protect the hinge block when the door swings to the full opening position in and out.

Cleaning Your Glass Simple Hardware

• Dry hardware after use to minimize water spots and other discoloration.
• Avoid harsh or abrasive cleaning agents, scrub brushes, etc. as these will damage the finish.
• Use a mild mixture of gentle liquid soap and water and test on an inconspicuous part of the hardware first.
• After washing, thoroughly rinse with clean warm water and buff dry.

Hinge Care

• Glass Simple hinges arrive pre-greased for quiet operation.
• In the event of a hinge squeaking, add a several drops of mult-purpose oil around the nylon washer.
• If the hinge is taken apart, the interior components should be lubricated with a little bit of white lithium grease.
• Avoid spray-on lubricants.
