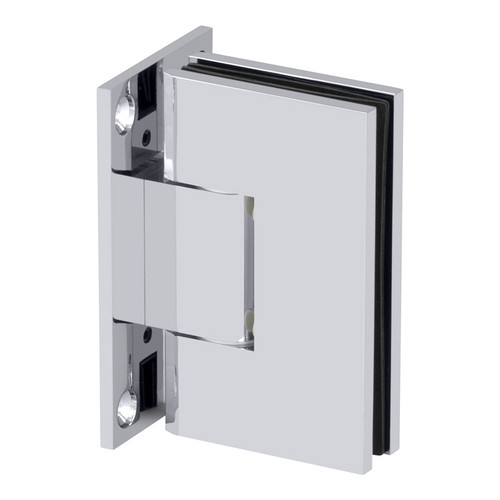

VIS0F – Glass Simple Vista Square Profile Wall Mount Hinge, Full Back Plate

Description

• Compare to VCT037, VALF1
• Self-centering wall mount hinge with full back plate
• For 3/8” – 1/2” (10-12mm) tempered glass
• Solid brass
• Strong design for heavier doors
• Swings 90 degrees both ways

Other Details

• Edge: Square profile

Technical Specifications

.

• Only use 2 hinges; maximum door weight is 140 lbs and maximum door width is 39” (991 mm).
• DO NOT exceed the maximum door weight OR door width.
• Only tempered or laminated tempered glass may be used.
• Avoid using power tools during hinge installation as these may damage the finish.

Product Details

The Vista hinge is ideal for installing wider and heavier door panels. It is a solid brass wall mount hinge with full back plate, available in various popular finishes. The 90 degree factory setting of the pivot pin is right for standard door closure. Purchaser can adjust the pivot pin for 5 more degrees of closure if the door needs to close with more pressure against the jamb. The hinge comes with a bidirectional hinge block bumper that is designed to protect the hinge block when the door swings to the full opening position in and out.

Cleaning Your Glass Simple Hardware

• Dry hardware after use to minimize water spots and other discoloration.
• Avoid harsh or abrasive cleaning agents, scrub brushes, etc. as these will damage the finish.
• Use a mild mixture of gentle liquid soap and water and test on an inconspicuous part of the hardware first.
• After washing, thoroughly rinse with clean warm water and buff dry.

Hinge Care

• Glass Simple hinges arrive pre-greased for quiet operation.
• In the event of a hinge squeaking, add a several drops of mult-purpose oil around the nylon washer.
• If the hinge is taken apart, the interior components should be lubricated with a little bit of white lithium grease.
• Avoid spray-on lubricants.
